8 TONNE CAPACITY

6 tonne

Description

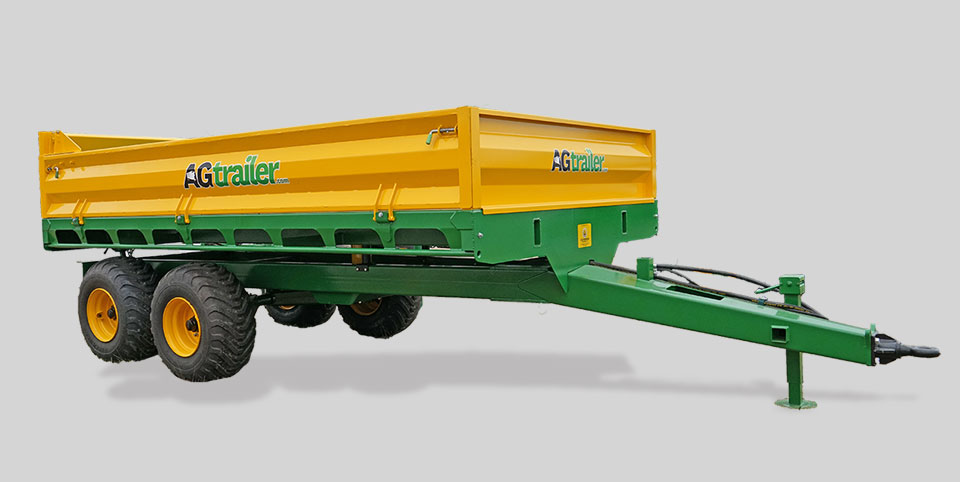

The Agtrailer Tip Trailer range are hydraulically tipped flat deck trailers with detachable sides and spreader tailgate. The tailgate is usually hydraulically tripped for accurate starts when spreading gravel on tracks. The triangular chassis offers impressive strength to weight ratios and manages stress to resist fatigue and metal fatigue. The floor of the trailer is made of 32mm H3 Pine or 3-6mm Corten steel depending on the clients needs and specification. With a reputation for performing well, with low maintenance input, these designs are backed up by 65 years of successful trailer manufacturing in New Zealand.

Features

Modular Design

The deck, sides and axle are all easily removed ensuring minimum down-time when servicing is required.

Accurate Spreads

The tailgate is hydraulically tripped for accurate starts when spreading gravel on tracks.

Drop-In or Drop-Down Sides

The trailer sides can be custom built to have drop-in or drop-down sides that are fully removable.

Anti-Corrosive

Steel parts are power blasted, epoxy primed and coated with two pack urethane for corrosion resistance. Chassis parts, side panels and tailgate can be hot-dipped galvanised.

Manoeuvrable

All models are with an asymmetric, independently oscillating tandem walking beam axle. This improves manoeuvrability and reduces tyre wear on paved surfaces while maintaining good floatation suspension for rough surfaces.

Heavy-Duty Chassis

The triangular chassis offers impressive strength to weight ratios and manages stress to resit fatigue and metal failure.

Specifications

Capacity 8 tonne
Machine Axle Tandem
Tyres 400/60-15.5 W&T
Deck 4mm Corten Steel
Tare kg
Deck Length 4.2m
Deck Width 2.5m
Deck Height m

Accessories

Hydraulic Brakes

They're recommended for 16-20m3 range while towing on hilly terrain and when carrying denser, heavier feed.

Deck Extension

The deck extension adds 0.9m to 1.2m of length to any trailer deck. These extensions are usually for transporting hay, straw, bales or farm equipment.

Lights & Hazard Panels

Be safe and be seen while on the road. Get the LED lights and Hazard Panels fitted to your trailer if you are planning to tow the wagon on the road.

Hydraulic Latching Tailgate

All trailer tailgates are hydraulically tripped allowing an accurate start when spreading gravel on tracks.
Blog Single

Swivel Tow Eye

The swivel tow eye is optional for your trailer. It is ideal for use on uneven terrain and is a safety feature in the case of trailer rolloves.

Galvanised Sides

Galvanised sides is promoted for wagons to be used in high rainfall zones, protecting the wagon from the corrosive elements.
