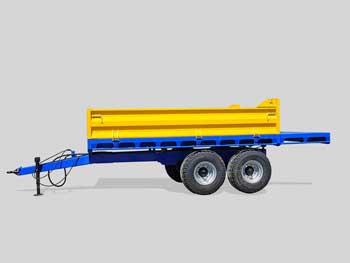

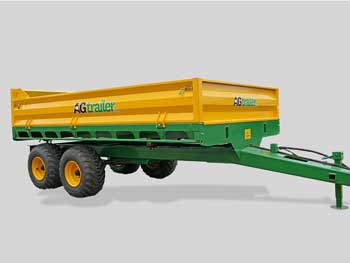

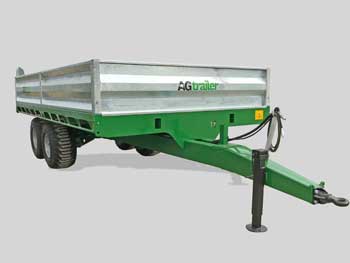

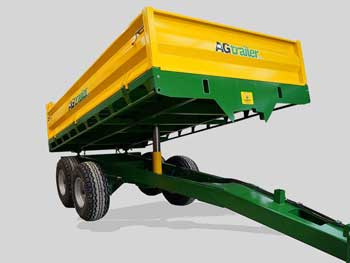

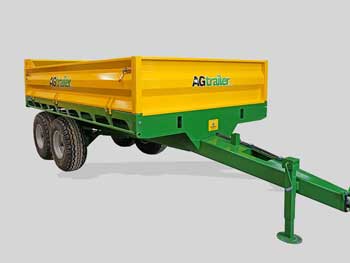

The Agtrailer Tip Trailer range are hydraulically tipped flat deck trailers with detachable sides and spreader tailgate. The tailgate is usually hydraulically tripped for accurate starts when spreading gravel on tracks.
The Agtrailer triangular chassis offers impresive strength to weight ratios and manages stress to resist fatigue and metal fatigue. The floor of the trailer is made of 32mm h3 Pine or 3-6mm corten steel.
With a reputation for performing well, with low maintenance input, these designs are backed up by 65 years of successful trailer manufacturing in New Zealand.
The deck, sides and axle are all easily removed ensuring minimum down time when servicing is required. Drop-down sides are removable.

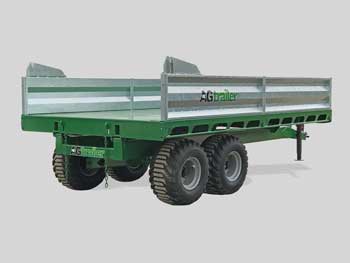

The trailer sides are drop-down and fully removable. Drop-in sides are available on request.
The tailgate can be hydraulically tripped for accurate starts when spreading gravel on tracks.

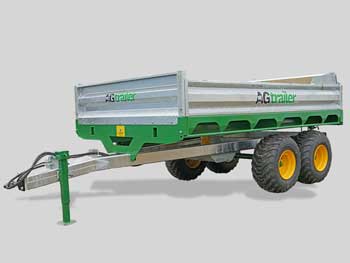

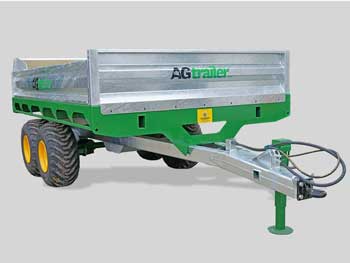

Steel parts are power blasted, epoxy primed and coated with two pack eurethane for corrosion resistance. Chassis parts, side panels and tailgate can be hot-dipped galvinised.
All models are fit with a tandem independently-oscillating 'walking beam' axle. This improved manoeuvrability and reduces tyre wear on paved surfaces while maintaining good floatation suspension for rough surfaces.
The triangular chassis offers impressive strength to weight ratios and manages stress to resist fatigue and metal failure. The floor of the trailer is made of 32mm HD pine or 3-6mm corten steel depending on the need.
|3 tonne||5 tonne||6 tonne||8 tonne||10 tonne||12 tonne||16 tonne|
|Dimensions||2.7 x 2.3m||3.3 x 2.4m||3.6 x 2.4m||4.2 x 2.4m||4.2 x 2.45m||5.0 x 2.5m||5.5 x 2.5m|
|Tyres||11.5 x 15.3||11.5 x 15.3||11.5 x 15.3||400/60-15.5||15/70x18||On Request||On Request|
|Deck||Timber||Timber||Timber||Timber||Corten Steel||Corten Steel||Corten Steel|
* CIL Machinery also build and repair truck and trailer decks to NZTA Road Transport standards. If you require a custom build we are happy to assist with design and construction specific for you.
Adding 0.9-1.2m to the length, the deck extensions are usually for transporting hay, straw, bailage or for transporting farm equipment.
Swivel Tow Eye
Ideal for use on uneven terrain and is a safety feature in the case of trailer rollovers.
Hydraulic Latching Tailgate
The tailgate is hydraulically tripped for accurate starts when spreading gravel on tracks.

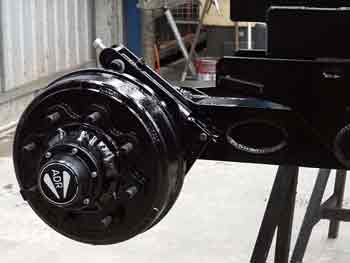

Are recommended for larger trailers. Thery are available as two, front wheel brakes or as four wheel braked system.
LED Rear Lighting
Be safe and be seen while on the road. Get the LED Lights and Hazard Panels fitted to your trailer if you are planning to tow the wagon on the road.

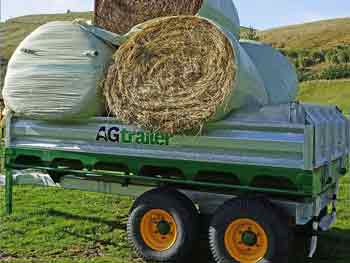

The trailer's sides are available with either painted or hot-dipped galvinised.
